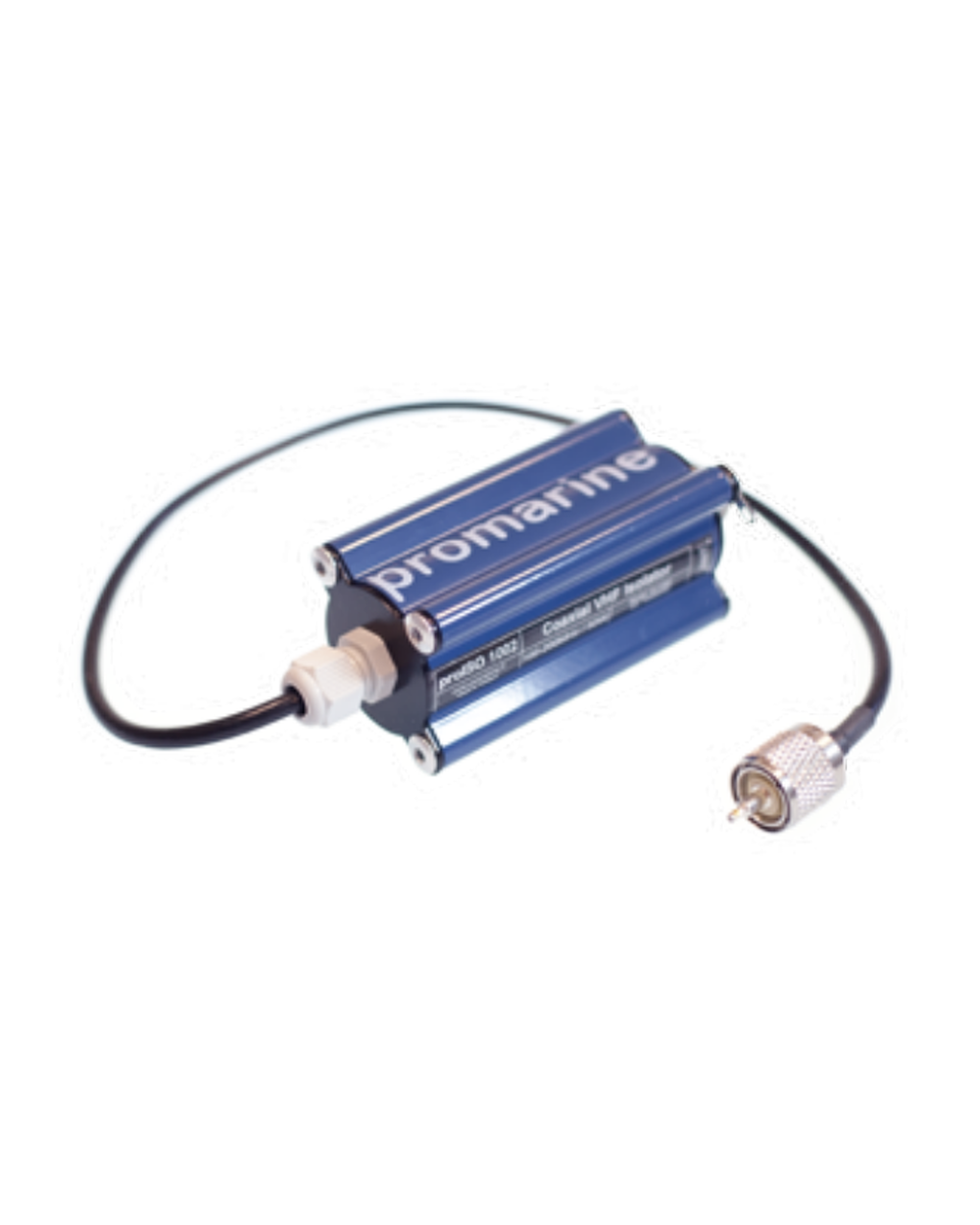

proISO 1002 - Coaxial VHF Isolator 50ohm 100MHz-200MHz

The proISO 1002 is a galvanic coaxial cable isolator designed specifically for marine VHF radios, operating within the 100 MHz to 200 MHz frequency range. It provides essential ground loop protection, preventing unwanted DC current paths between the vessel's metallic body and radio communication equipment. This isolator is particularly beneficial for service and maintenance personnel, enabling quick field services and troubleshooting. Its passive construction, combined with IP65 ingress protection, ensures reliable performance in demanding marine environments. The device complies with IEC60945 standards, guaranteeing safe operation under various environmental conditions.

Frequency range 100 MHz - 200 MHz Impedance 50 O Return Loss > 25 dB Insertion Loss < 0.2 dB Power Handling 50 W Power Handling (peak) 100 W Connectors UHF female (ANT), UHF male (VHF) Weight 200 g Dimensions 32 mm x 57 mm x 130 mm Material Painted aluminium Ingress protection IP65 Operational environment -20° - +60° C Standards IEC60945
