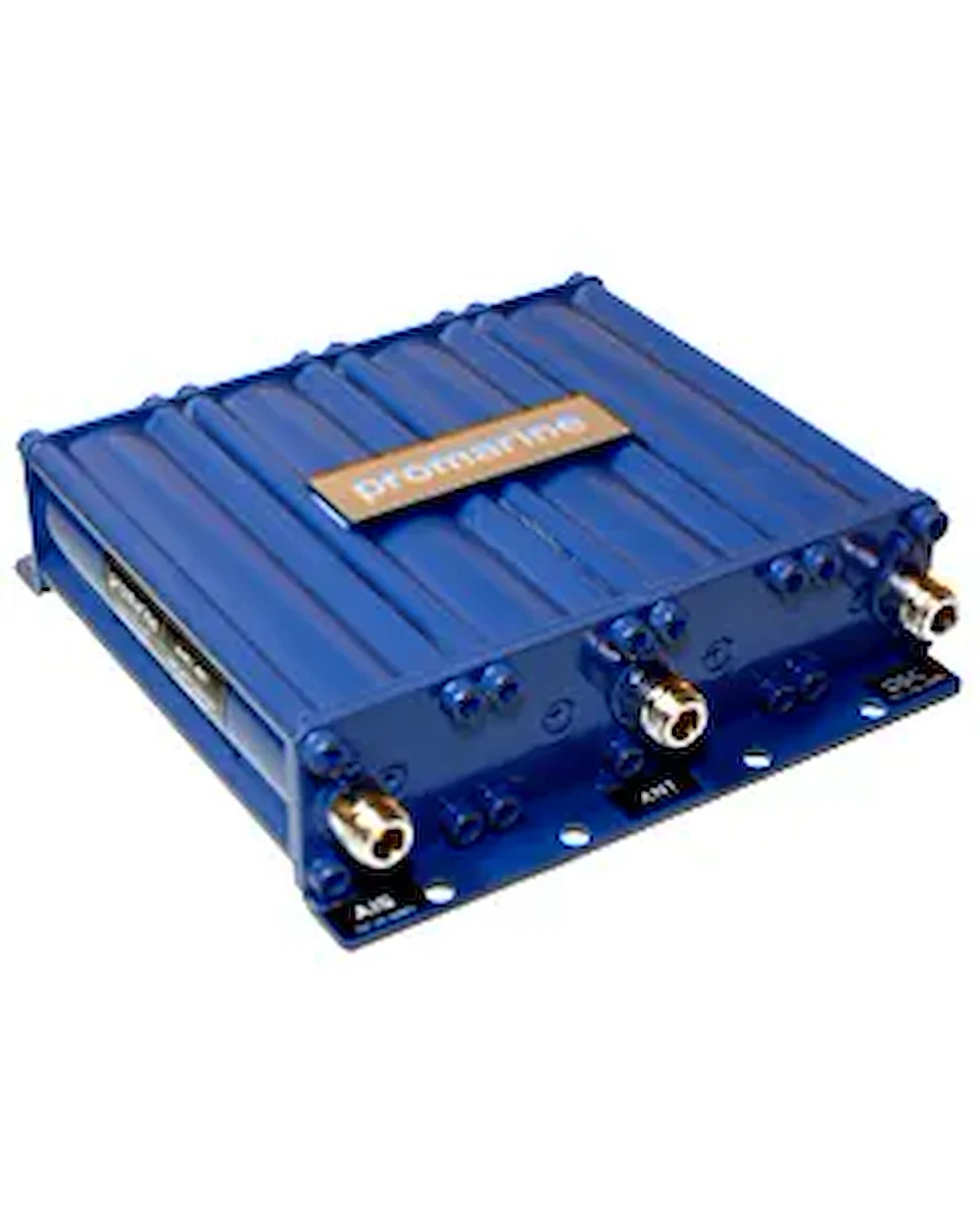

proFIL 4201 - AIS TRX / DSC duplex filter 160MHz-162MHz / DSC ch70

The proFIL 4201 is a high-performance duplex filter designed for integrating AIS and DSC systems using a single VHF antenna. It features high isolation technology, effectively separating AIS and DSC channels to prevent interference, which is crucial for maintaining reliable communication at sea. The filter's low insertion loss ensures that signal strength is preserved, enhancing the performance of both systems. Its compact, robust design allows for easy installation on vessels, reducing the need for additional antennas and cabling. Constructed from painted aluminium, it is built to withstand the challenging conditions of marine environments, making it a reliable choice for vessel operators.

Filter type High isolation duplex filter DSC frequency 156.525 MHz (ch70) AIS frequency 161 MHz - 163 MHz ANT frequency 155 MHz - 163 MHz Return loss >20 dB Insertion loss <1.0 dB Isolation between output ports >60 dB Power handling 100 W Impedance 50 Ohm Connector type N-type female Operating temperature -30° to +60° C Material Painted aluminium Height 50 mm Width 200 mm Depth 184 mm Weight 1226 g
